MS35240-1; FFS92TYPE1STYLE23 (PN) SCREW, MACHINE, NS/NOS
- Terms of Sale U.S. SALES ONLY, PARTS SOLD “AS IS, WHERE IS”, NO WARRANTY, EXPRESS OR IMPLIED
- Special Payment Instructions CREDIT CARD, USPS MO, CHECK-HOLD TILL CLEAR, PAYMENT WITHIN 10 DAYS CLOSE
- Special Shipping Instructions DOMESTIC (WITHIN U.S.) SHIPPING ONLY, CARRIER AND FEE DETERMINED AT END OF AUCTION
- Item # 243407
- Qty Available 25

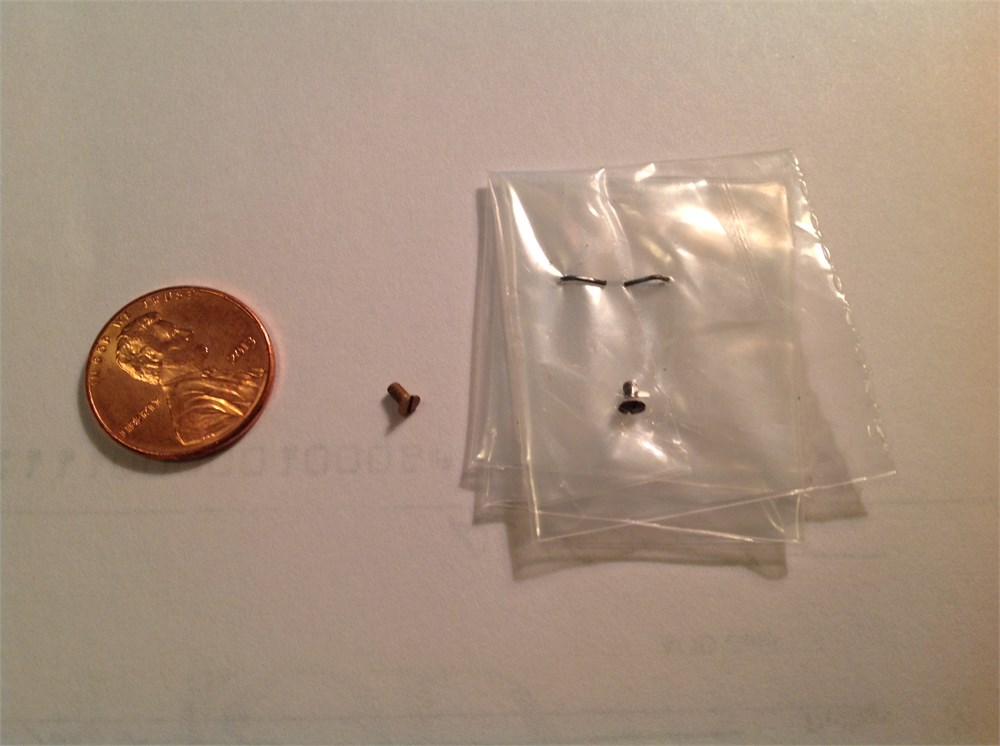

SCREW, MACHINE
5305 00 722 1789
MFG P/N: MS35240-1; FFS92TYPE1STYLE23
1 EA
|
NAME |
ITEM NAME |
SCREW,MACHINE |
|
AAJD |
THREAD CLASS |
2A |
|
AAJF |
THREAD DIRECTION |
RIGHT-HAND |
|
AASA |
THREAD LENGTH |
0.094 INCHES MINIMUM AND 0.125 INCHES MAXIMUM |
|
AASB |
FASTENER LENGTH |
0.094 INCHES MINIMUM AND 0.125 INCHES MAXIMUM |
|
AASK |
HEAD STYLE |
FLAT COUNTERSUNK UNDERCUT |
|
AASL |
HEAD DIAMETER |
0.105 INCHES MINIMUM AND 0.119 INCHES MAXIMUM |
|
AASU |
HEAD HEIGHT |
0.017 INCHES MINIMUM AND 0.026 INCHES MAXIMUM |
|
ABQZ |
INTERNAL DRIVE STYLE |
SLOT |
|
AHYM |
NOMINAL THREAD DIAMETER |
0.060 INCHES |
|
CMLP |
THREAD QUANTITY PER INCH |
80 |
|
CRSQ |
COUNTERSINK ANGLE |
80.0 DEGREES MINIMUM AND 82.0 DEGREES MAXIMUM |
|
CYAU |
SCREW MATERIAL |
STEEL |
|
CYBA |
SCREW SURFACE TREATMENT |
CADMIUM AND CHROMATE OR ZINC AND CHROMATE |
|
THSD |
THREAD SERIES DESIGNATOR |
UNF |
